Overview

What It Is.

Past Time is a desk timer with a black-and-white e-paper display. It includes 101 animated scenes, each designed around the passage of time. You can follow a crane building a tower or watch a game character's health bar shrink as the countdown runs.

The subject itself reaches its climax exactly as the timer hits zero, with many faces playing a bespoke "time's-up" finale. Its stark 1-bit aesthetic keeps it distraction-free on the desk. The firmware runs four timer modes (Countdown, Pomodoro, Stopwatch, Interval/HIIT), an on-device settings menu, a soft power button, an aquarium screensaver, optional Wi-Fi clock and weather, and deep-sleep standby. It is at v1.0, shipped.

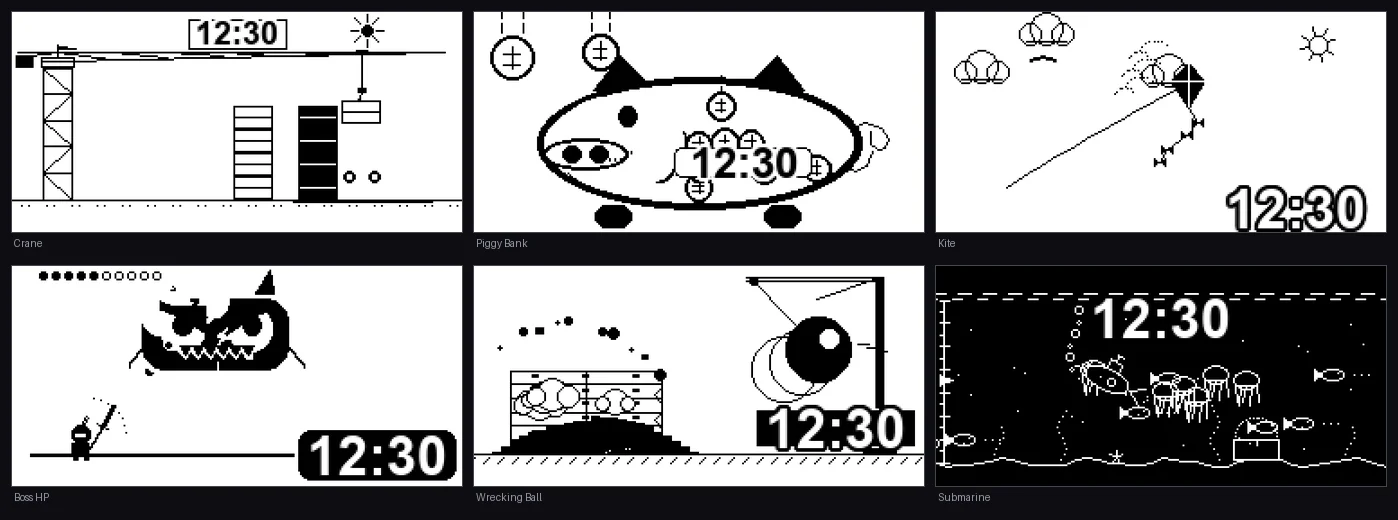

Six Past Time faces rendered for the e-ink panel: a tower crane, a piggy bank filling with coins, a kite climbing its string, a boss with a draining HP bar, a wrecking ball, and a submarine, each showing the remaining time
Six of the 101 faces, drawn for a 1-bit e-ink panel. Each subject is chosen so the scene reaches its own climax as the countdown hits zero: the crane tops out, the piggy bank fills, the kite reaches the top of its string.

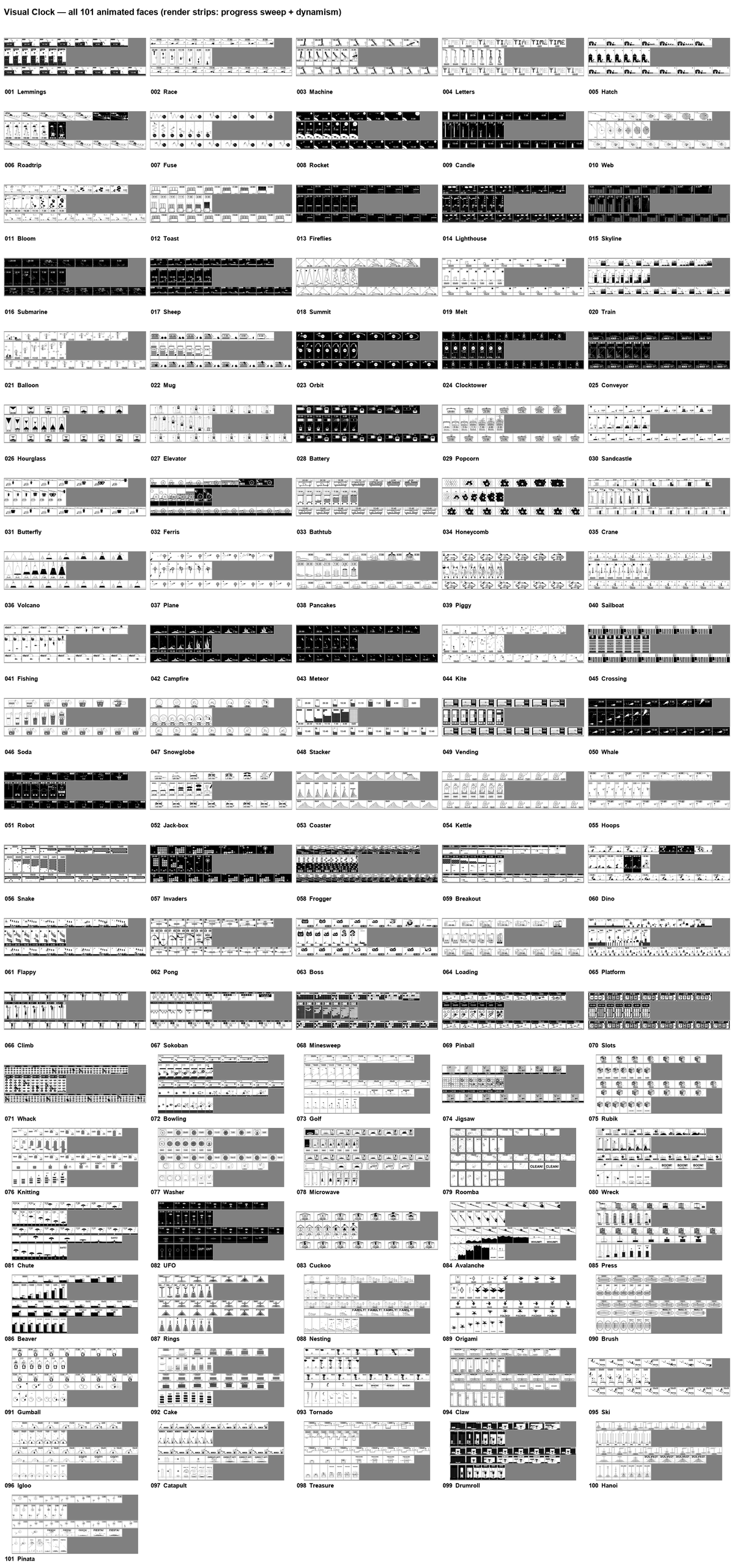

A tall contact sheet titled Visual Clock, all 101 animated faces, showing a labelled render strip for each face across the elapsed-time sweep, including Lemmings, Machine, Summit, Invaders, Pinball, Claw and Pinata.
All 101 faces, each shown as a strip across the full elapsed-time sweep so the animation can be checked at a glance; the sheet predates the rename, so it carries the working title Visual Clock. Producing this many variations to one specification is most of the work.

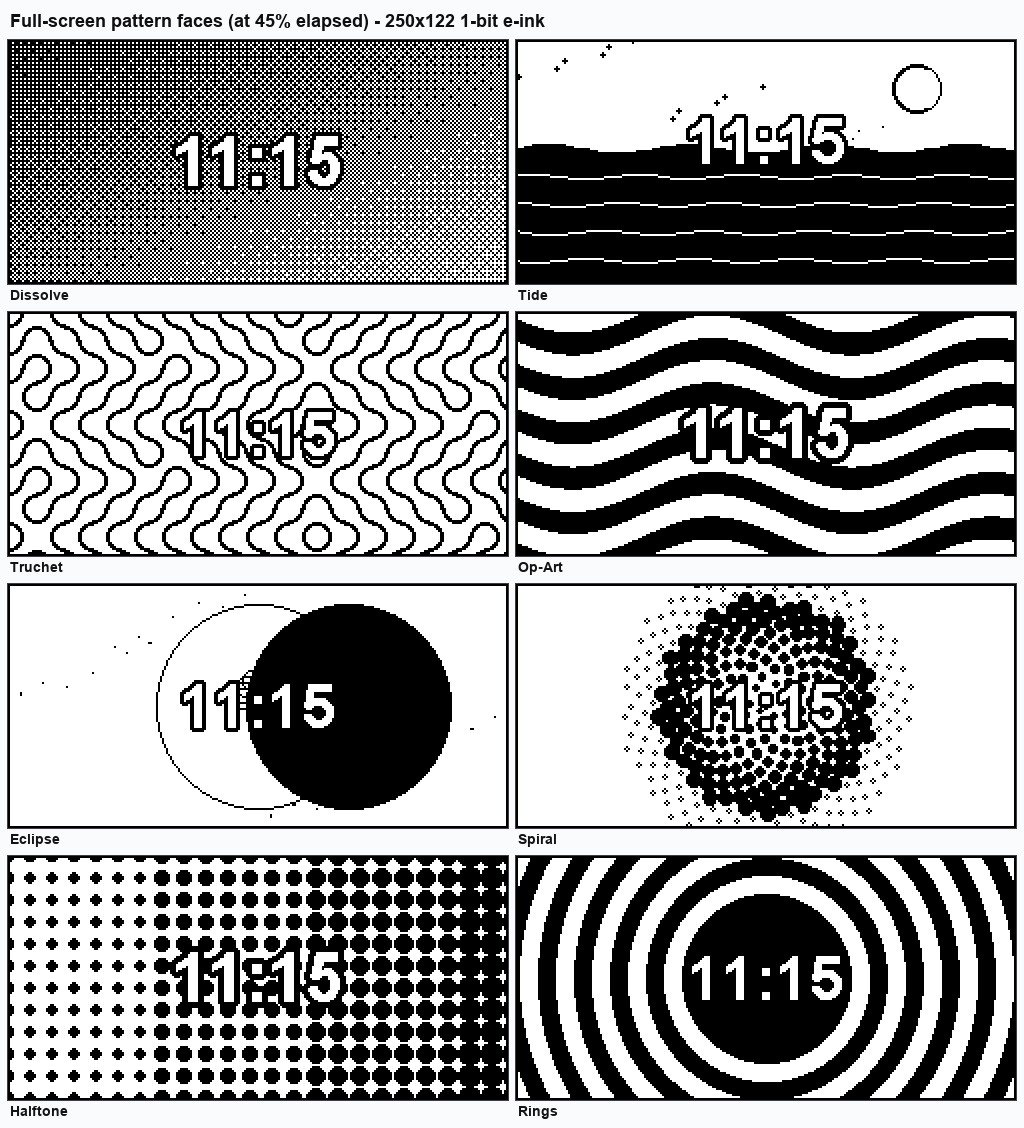

A contact sheet headed Full-screen pattern faces at 45 percent elapsed, 250 by 122, 1-bit e-ink. Eight named faces are shown, Dissolve, Tide, Truchet, Op-Art, Eclipse, Spiral, Halftone and Rings, each rendering the same 11:15 reading over a different generative pattern.
An options sheet for the abstract faces, with the display specification written into its title. The sheet is made to hand to someone so they can choose a direction.
At A Glance

Scaling Embedded Content

Past Time runs on the Elecrow CrowPanel ESP32‑S3 2.13" E‑Paper HMI (122×250, SSD1680). The interesting problem was scale: 101 distinct full-screen C++ animations. The project builds a desktop preview of the e-ink screen and a pipeline of software agents that design and check faces so that each face can be drawn, rendered, critiqued, and integrated without flashing hardware on every iteration.

Visuals

101 Animated Stories

Each face is one orientation-aware function that lays out proportional to the panel size and draws a 1-bit scene: a crane raising a high-rise, a kite climbing, a submarine diving to a treasure chest, a lighthouse beam guiding a boat to dock. The work is iterated on a desktop render mirror first and then ported, since the edit→compile→flash loop is impractical at 101 faces.

Pipeline

1-Bit Render Mirror

A Python/Pillow shim re-implements the ESP32 GFX primitives so a face's draw code renders pixel-faithfully on the desktop at 122×250, 1-bit, anti-aliasing off. The pipeline writes C++, renders a verification strip, and tests the output against a strict rendering contract.

Quality Gate

Per-Face Audit Fleet

One reviewer agent per face grades its strip against the contract (recognizable, embodied, sensible, dynamic, legible) and returns a ranked fix list. The first pass scored 84/101; the 17 flagged faces were redesigned and re-audited until no face scored below 4/5.

Animated Aquarium Timer rendering
Reliable Workflows

Safe, Repeatable Integration.

Giving the pipeline the ability to render and critique its own output is what makes the scale tractable. Each face is built by an autonomous agent that renders a 3-row verification strip (Row A is the scene swept across the countdown in landscape, Row B the same sweep in portrait, and Row C samples per-second motion to check the scene keeps moving), then critiques it against the contract and iterates.

Once a scene passes, Python integration scripts splice the verified C++ into the firmware: adding the enum id, name, scene function, finale, and dispatcher case. They validate before applying and are safe to re-run on partial batches. Splicing dozens of functions into the 38k-line firmware by hand would introduce errors that nothing catches.

Past Time animated story-scene countdown face
Animation Model

One Face, 30 s to 90 min

Every face is driven by three independent inputs, so the same scene reads well across the whole range. A single progress value would barely move on a 90-minute timer and give a one-minute one too little to draw.

frac

What finishes at zero

The remaining fraction (1→0) drives the one thing that must complete exactly at zero: the crane's roof flag, the kite reaching the top, the boat docking.

elapsedSec

What keeps moving

Free-running elapsed seconds drive continuous motion at a constant, watchable pace regardless of the total duration, so motion continues between the moments that land on the countdown.

totalSec

How much content

The total duration scales how many elements the scene draws: more coins in the piggy bank, more floors on the crane. Splitting "what finishes" from "what moves" from "how much" is what lets one face work from 30 s to 90 min.

Finales

61 Bespoke Time's-Up Animations

The moment the timer hits zero gets its own animation. 61 of the 101 faces have a custom finale, dispatched per-face from Finale.cpp via runFaceFinale(); faces without one fall back to a chosen generic alarm animation (Flash, Rings, Checker, Text, Wipe, or Border).

Scale

Over-the-Air Updates, With Rollback

The 101-face scene library and its finales make up the bulk of the firmware. The whole app fits inside a single over-the-air update slot with room to spare, on a two-slot layout so a failed update can roll back to the last working version.

Power Engineering

The E-Ink Lifecycle

Graceful Sleep

Deep-Sleep Park

When idle, paused, finished, or soft-powered-off (hold EXIT ~1.5 s), the ESP32-S3 enters true deep sleep and any of the 5 buttons wakes it via EXT1. The bistable e-paper holds its last frame with no power, so aggressive sleep is free. The board has no battery-sense calibration, so no measured standby current is claimed. Soft-off standby is weeks, not months, because the USB-serial chip and regulator still draw; a hardware switch on the battery lead is the path to true zero-drain.

Hardware Quirks

Driver Profiling

Two boards with the same part number turned out to carry different glass. On a replacement board the SSD1680 panel ghosted on the original GxEPD2 profile. The fix was a one-line controller-class swap to GxEPD2_213_GDEY0213B74 (same 122×250 SSD1680 controller, different waveform), so the driver profile has to match the actual glass batch.
